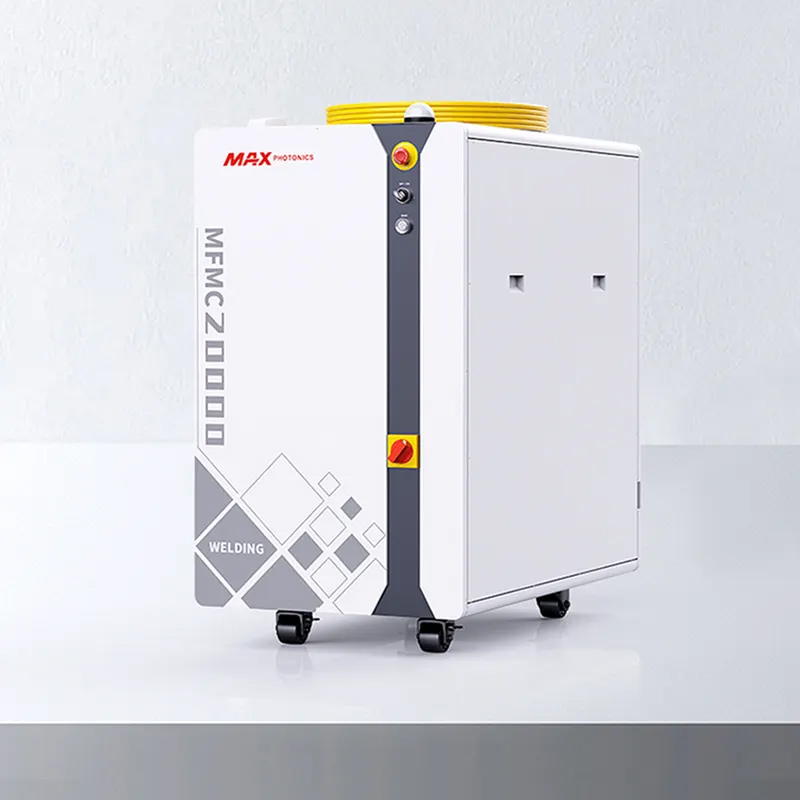

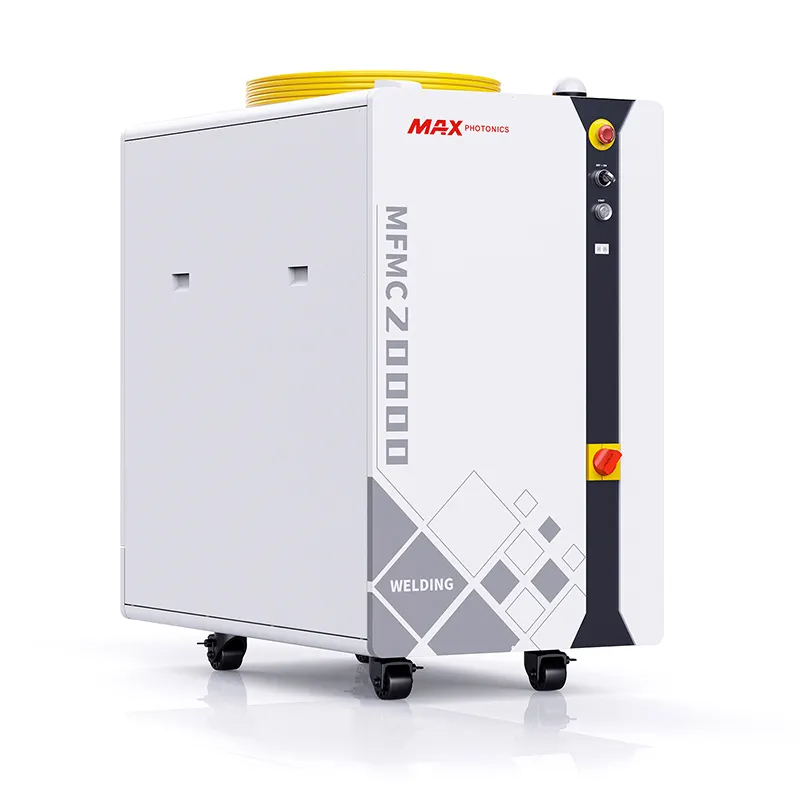

Max 20000-30000 Fiber Laser Welding Source

Name: Max 20000-30000 Fiber Laser Welding Source
Brand: Chongqing Chuke Intelligent Machinery Equipment Co., Ltd.
Rating: 4.5 (3 reviews)

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	DDU,FOB,CFR,CIF,EXW,DAF,Express Delivery,DES,FAS,FCA,CPT,CIP,DEQ,DDP
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Max 20000-30000 Fiber Laser Welding Source

Brand: Zixu

Parameter: MFMC-20000 (W) / MFMC-20000 (W)

Output Power (W): 20000 / 30000

Operating Mode: Continuous/Pulsed

Polarization: Random

Power Adjustment Range (%): 5~100

Center Wavelength (Nm): 1080±5

Spectral Bandwidth (3dB) (nm): 5~8

Short-Term Power Stability (%): ±1

Long-Term Power Stability (%): ±1.5

Beam Quality BPP: 5-6.5 (150μm)

Laser On Time (μs): ＜50

Laser Off Time (μs): ＜50

Modulation Frequency (KHz): 50

Indicating Red Light Power (μW): 200

Output Cable Type: LOE

Fiber Cable Length (m): 25 (Customizable)

Fiber Core Diameter (Mm): 150 (200/300 Optional)

Fiber Cable Bend Radius (Mm): 200

Working Voltage (VAC): 400 (±40)

Rated Power Consumption (KW): 53

Operating Environment Temperature (°C): 25 (10~40)

Storage Temperature (°C): -10~60

Operating Environment Humidity (%): 10~85

Cooling Method: Water Cooling

Machine Dimensions (W×D×H) (mm): 700×1200×1140

Additional Info

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: DDU,FOB,CFR,CIF,EXW,DAF,Express Delivery,DES,FAS,FCA,CPT,CIP,DEQ,DDP

Product Description

Product Description

The Max 20000-30000 Fiber Laser Welding Source is a high-performance fiber laser designed for welding heavy-duty materials, especially for industries like steel construction, power generation, shipbuilding, railway, and heavy machinery. Offering a fast response time (μs-level) and exceptional stability, this machine ensures high precision and high-quality welds for thick plates and Other challenging welding tasks. It integrates advanced intelligent functions, including waveform editing, health diagnostics, and power feedback, providing unmatched versatility and reliability for demanding industrial applications.

Features

High-Speed Response (μs-Level)

With a microsecond-level response, this Laser Welding Machine is perfect for high-precision welding tasks that require speed and accuracy.

Exceptional Stability

Designed with high safety standards (PLD/PLE) and superior system stability, ensuring consistent welding performance and reliability in long-term operations.

Waveform Editing Function

The laser includes a waveform editing card, enabling precise control of the laser output waveform to accommodate the unique needs of irregular workpieces.

High System Compatibility

Compatible with various bus communication protocols (I/O communication, Ethernet, and more), allowing for easy integration into different industrial systems.

Customizable Fiber Optic Diameter

Users can select different fiber core diameters (150μm, 200μm, 300μm) depending on their specific welding requirements, allowing for tailored applications.

Superior Electrical-Optical Efficiency

With an electrical-optical conversion efficiency of ≥40%, this machine reduces energy consumption while maintaining top performance.
