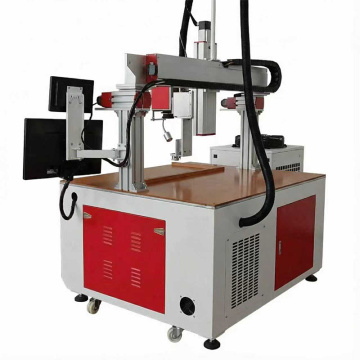

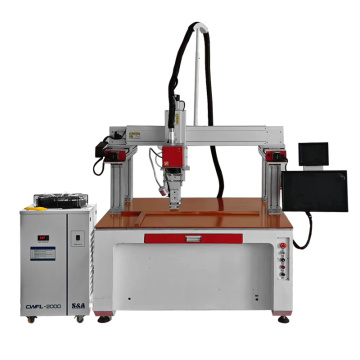

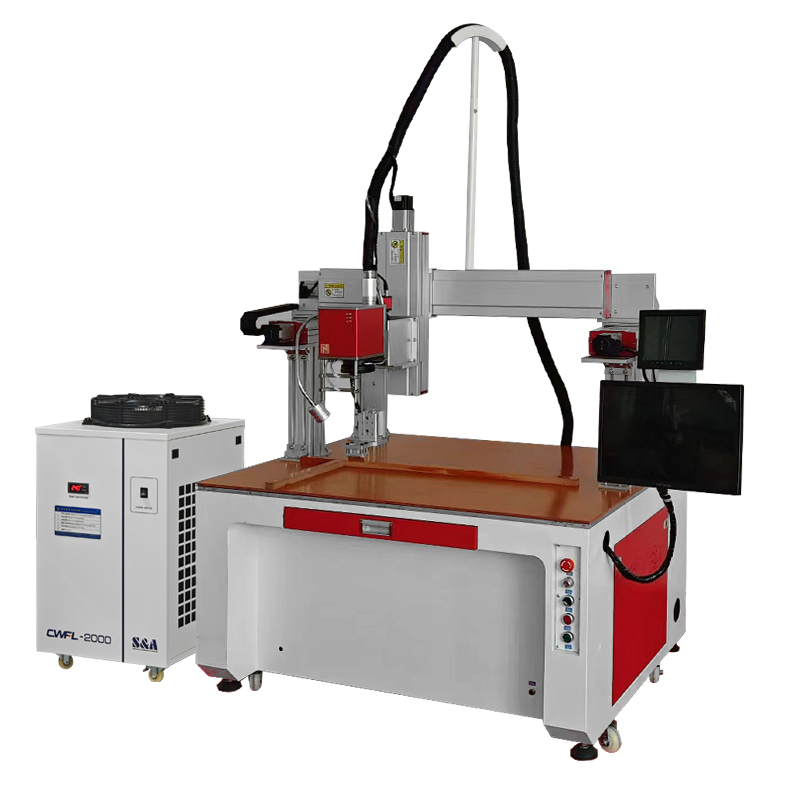

Gantry Automatic AOB Laser Welding Machine for Lithium Battery Pack

Name: Gantry Automatic AOB Laser Welding Machine for Lithium Battery Pack
Brand: Chongqing Chuke Intelligent Machinery Equipment Co., Ltd.
Rating: 4.7 (24 reviews)

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,DDU,CFR,CIF,EXW,DAF,Express Delivery,FAS,DES,FCA,CPT,DEQ,CIP,DDP
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Gantry Laser Galvo Welding Machine for EV Lithium Power Battery Pack

Brand: Zixu

Laser Type: AOB/ABP Fiber

Laser Brand: JPT, MAX, Raycus or customize

Laser Power: 1000W / 1000W ~ 6000W / 6000W

Laser Wavelength: 1080 ± 5nm

Pulse Frequency: 1 ~ 5kHz

Axis Control: X, Y, Z

Travel Length Of Motion: 800 * 600 * 400mm or customize

Moving Module Accuracy: ± 0.005mm or customize

Feeding Speed: 30 ~ 600mm/s

Cooling Method: Water cooling

Power Input: 100 ~ 240VAC @ 50 / 60 Hz or 360 ~ 440VAC @ 50 / 60 Hz

Operation Temperature: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity:: 10 ~ 80%, no condensation

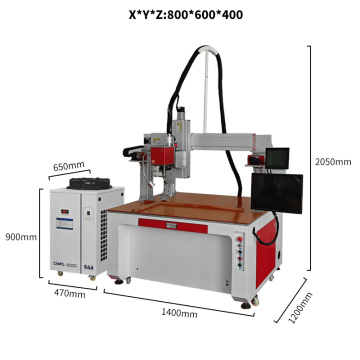

Dimension: 1400 * 1200 * 2050mm & 650 * 470 * 900mm

N.W.: 540kg

Additional Info

Packaging: Wood carton，2000 * 1350 * 2250mm,580kg

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,DDU,CFR,CIF,EXW,DAF,Express Delivery,FAS,DES,FCA,CPT,DEQ,CIP,DDP

Product Description

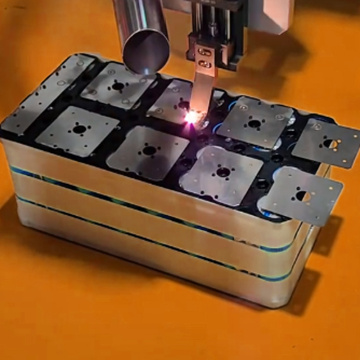

The Gantry Automatic AOB Laser Welding Machine for Lithium Battery Pack is specifically designed for high-speed production lines of power battery packs. Its 800×600×400 mm travel gantry frame can be flexibly integrated into MES-controlled conveyor lines, similar to a Dot Peen Marking Machine, or it can be used for rapid line cutting via manual loading, similar to a traditional Pneumatic marking machine. The biaxial galvanometer achieves precision welds on aluminum, copper, and nickel tabs comparable to high-end laser marking machines, while simultaneously marking QR codes and serial numbers online. This dual-purpose machine boasts a cycle time of ≤0.8 s/point.

Compatibility Highlights

- Supports all battery cell specifications including 21700, 32700, 33140, 40135, and 4680, with a pressing fixture pressure tolerance of ±3 N, essentially bringing the cylinder pressing precision of a pneumatic Marking Machine to a laser welding station.

- The high-speed galvanometer scanning head is natively integrated into the Laser Marking Machine platform, with a positioning accuracy of ±0.02 mm. It allows for "one-click material switching" between various tabs made of aluminum, copper, nickel, and silver—eliminating the need to change tungsten steel needles of different hardness as required by the Dot Peen Marking Machine.

- Open MES/PLC protocol, enabling automatic integration with existing PLC-controlled roller conveyors or AGVs; it can also revert to manual/robotic loading modes, allowing robots originally running the Marking Machine to be reused, saving on secondary integration costs.
