Basic Info

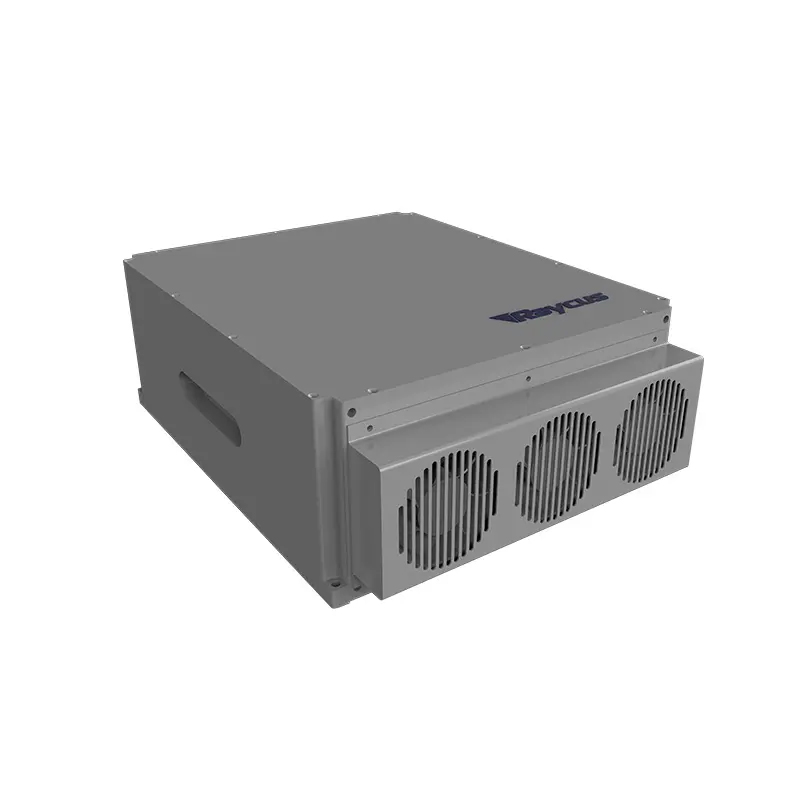

Model No.: Raycus RFL-P20QE 20W Q-Switched Pulsed Fiber Laser
Brand: Zixu
Average Output Power: 20 W
Central Wavelength: 1064 nm
Repetition Frequency Range: 30 – 60 kHz
Output Power Stability: ＜3%
Pulse Width: 120 – 150 ns (customizable)
Maximum Pulse Energy: 0.67 mJ
Beam Quality (M2): ＜1.5
Spot Diameter: 7 ± 1 mm
Polarization State: Random
Output Fiber Length: 3 m (customizable)
Input Voltage: 24 VDC
Power Adjustment Range: 10% – 100%
Power Consumption: 170 W
Cooling Method: Air-cooled
Dimensions (W X H X D): 260 × 340 × 120 mm
Additional Info
Transportation: Ocean,Express
Place of Origin: China
Payment Type: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,Express Delivery,DDU,CIF,EXW,DAF,FAS,DES,FCA,CPT,CIP,DEQ,DDP
Product Description
Key Features
?
High Stability Output: Ensures consistent performance for industrial applications
High Single-Pulse Energy: Enables deeper, clearer marks and precision processing
Short Pulse Build-Up Time: Increases processing speed and accuracy
High Marking Efficiency: Suitable for batch and high-speed production
Maintenance-Free Operation: Designed for long-term use with minimal downtime
Air Cooling System: Enhances reliability and simplifies installation
?
?
| Electrical & Mechanical Specifications | |
| Input Voltage | 24 VDC |
| Power Adjustment Range | 10% – 100% |
| Power Consumption | 170 W |
| Cooling Method | Air-cooled |
| Dimensions (W x H x D) | 260 × 340 × 120 mm |
?
Applications
?
Metal and non-metal marking
Precision engraving
Micro-machining
Pattern and text marking on reflective materials
?
Industrial marking requiring high-speed and high-quality performance
